Mackay-ITT

Mackay/ITT produced a broad line of marine radio gear which found much use on the high seas. However, it was not as successful on the Great Lakes and Inland Rivers as RMCA or Lorain.

Type 123-BX Cats Whisker Crystal Radio	Type-3002B Emergency Receiver

Mackay Type 168B Emergency Transmitter	Lifeboat Radio

Type 2003 HF TX	Mackay Advertisement

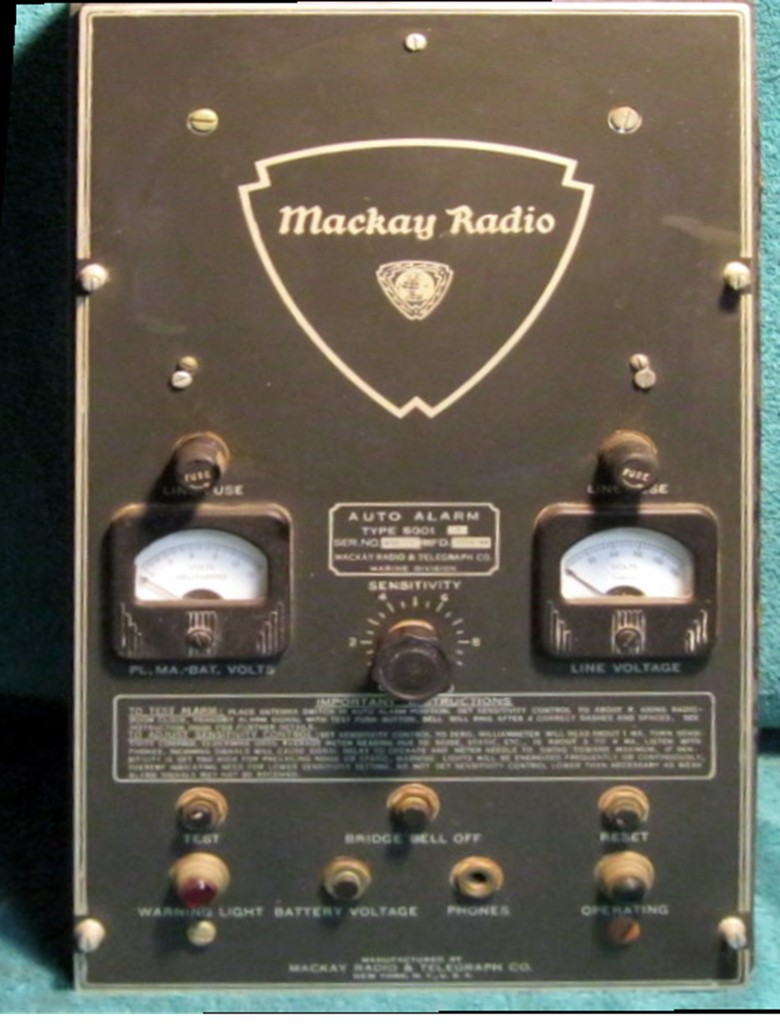

Type 5001 Auto Alarm	Mackay Receiver Type 101A

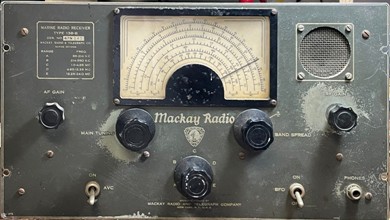

MacKay RX Type 138B Receiver	Mackay VLF Receiver

The Type 128AY (below), Type 128AW, Type 128AZ and the U.S. Coast Guard RC-123 are all essentially identical in appearance and have only slight internal differences.

MacKay RX Type 128AY Receiver	Mackay RX Type 129 Receiver

The 3001 below is an excellent Mackay regenerative receiver. They were designed for marine navigation use, and were built with the best available components. It has four bands, 15-41, 37-105, 95-250 and 240-650 kc. Controls are left to right, antenna trim, antenna switch, power, bandswitch, regeneration, RF gain, AF gain and speaker/phones. Tube complement is 35Z5, ballast R22, 6J5, 6SJ7 (2), 6G6 and 6SK7. Dimensions are 17"w x 9.5" h x 12" deep.

ITT/Mackay Type 3001A RX	Mackay RX Type 3007A Receiver

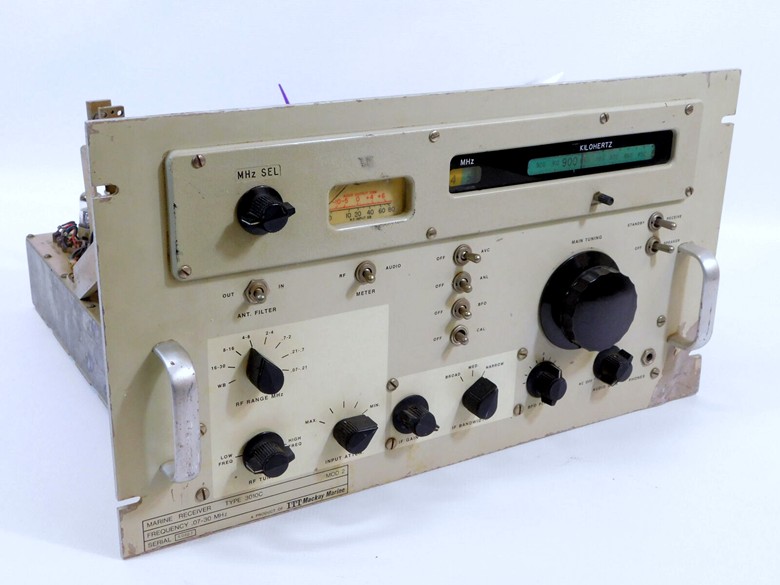

Mackay MRU19-20 -- ITT Telecommunications photo	ITT/MacKay Type 3010C Receiver Here from World Radio History is a 1967 QST review of the 3010C - Page 45

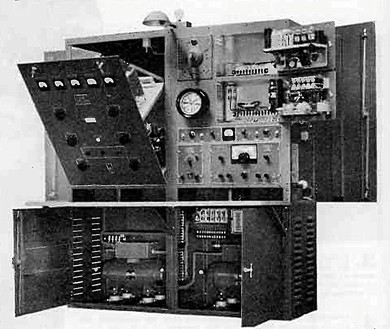

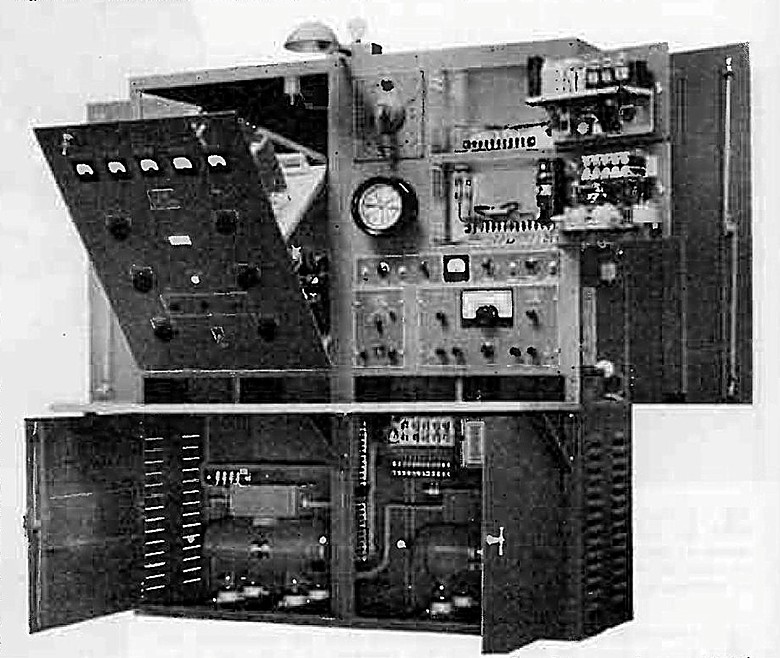

Federal Telephone and Radio Corp. was a manufacturing associate of I.T.&T. I believe their gear was intended for the high-seas, and I don't know of any use of it on the lakes or rivers. The image is from this article on the World Radio History site. I believe the receiver in the upper section, lower right, is a Mackay Type 3001. This console is similar to the Mackay console pictured above.

Federal WW2 Marine Console - 1943

Here are three external links to photos of ITT/Mackay gear:

Mackay gear from WCC
A small Mackay Radio Telephone
Mackay equipped ship station WGGF
